twin screw extruder

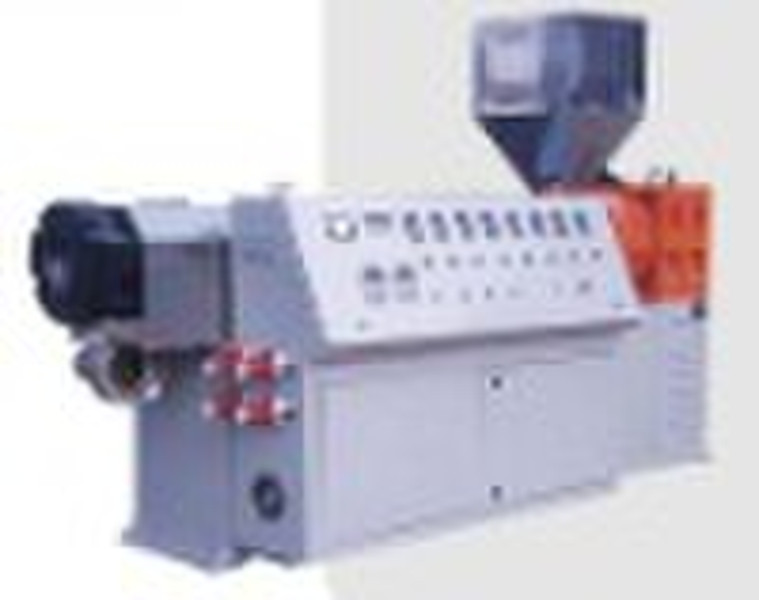

twin screw extruder This machine is a highly efficient agglomerating and extruding equipment. Using PVC powder as raw material for a direct forming, the exturders perform an excellent effectiveness.Machines of this series have wide application. With appropriate extruding heads, screws and other auxiliaries, they are able to directly convert plastics into pipes, boards, bars, films, hollow cross-section products. The machine has below advantages 1. Low shearing rate, uneasy degradation,plasticization uniform and agglomeration 2.Reliable quality ,wide application range and long servicing life. 3.Automatic temperature control, vacuum gas exhaustion, oil cooled screws 4.Stepless speed regulation,as well as a forced feeding and self-cleaning mechanism. Technology parameter Used for pipe extrusion Model SJZ-45SJZ-50SJZ-55SJZ-65SJZ-80SJZ-92Screw diameter(mm) 45/10050/10555/11065/13280/15692/188Screw rotate speed(rpm) 4545454534.73-34.7Driving motor(kw) 15/18.518.5/2222/303755110Max output capacity(kg/h) 110125180380500800Center height(mm) 105010501050105010501100Net weight(kg) 300030003500400055008000Dimension(L*W*H) (m) 3.3*1.2*2.13.6*1.1*2.13.6*1.1*2.14.2*1.5*2.44.7*1.5*2.46*1.6*2.5 Used for profile extrusion Model SJZ-45SJZ-50SJZ-55SJZ-65SJZ-80SJZ-92Screw diameter(mm) 45/10050/10555/11065/13280/15692/188Screw rotate speed(rpm) 34.734.734.734.72525Driving motor(kw) 1518.52230/375590Max output capacity(kg/h) 80100150250360600Center height(mm) 105010501050105010501100Net weight(kg) 300030003500400055008000Dimension(L*W*H) (m) 3.3*1.2*2.13.6*1.1*2.13.6*1.1*2.14.2*1.5*2.44.7*1.5*2.46*1.6*2.5
